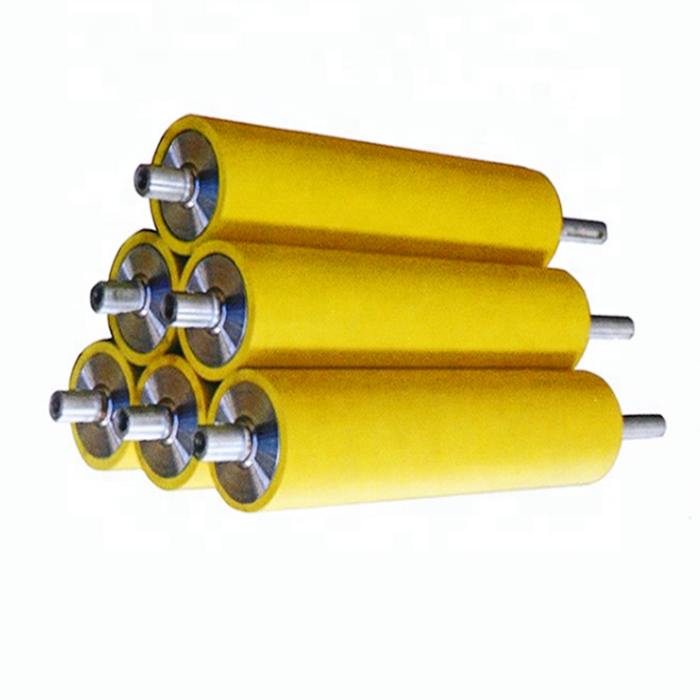

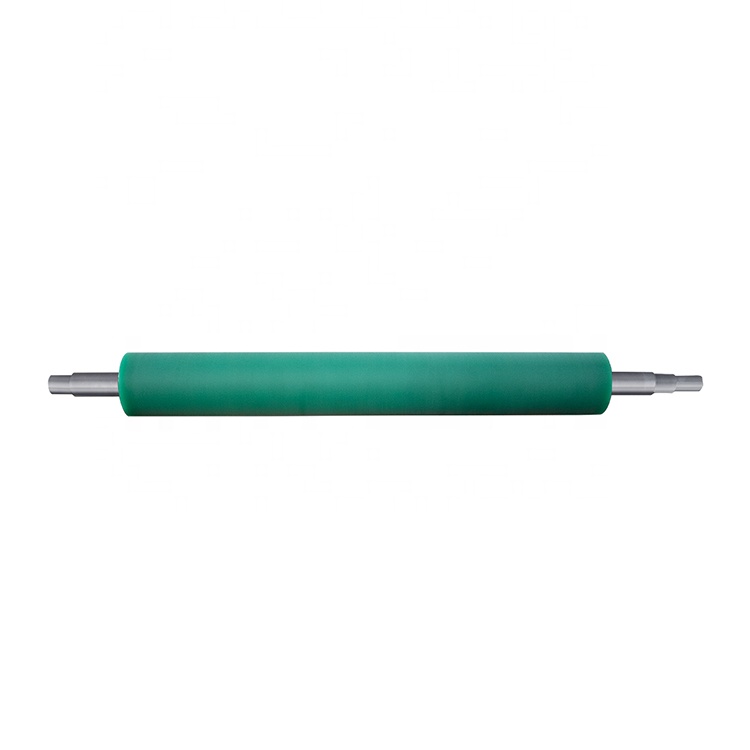

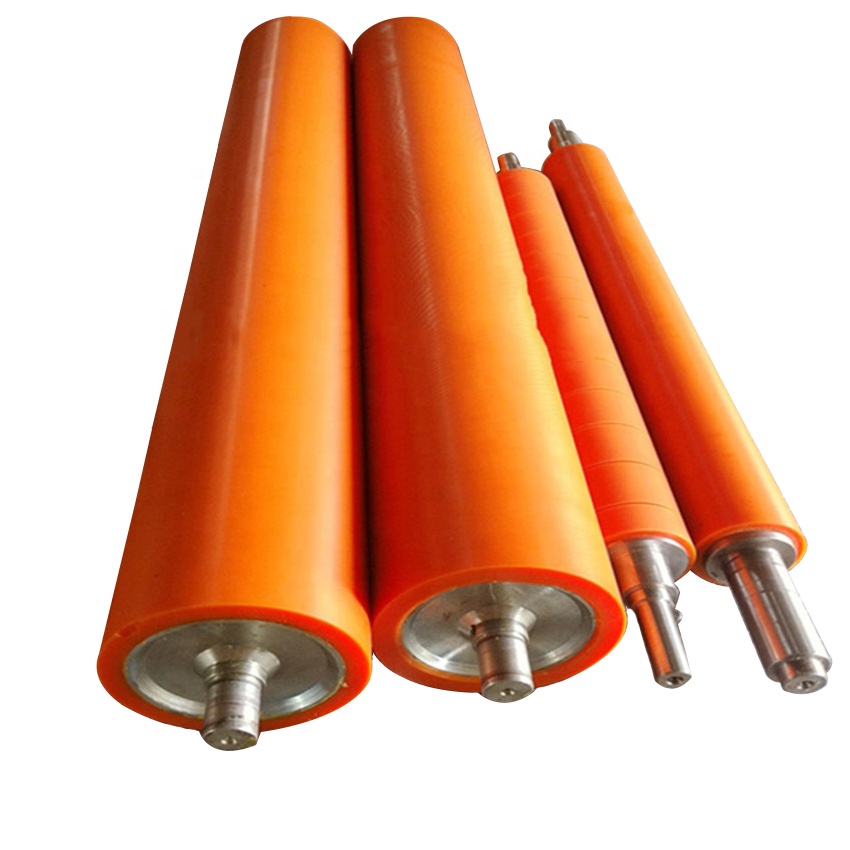

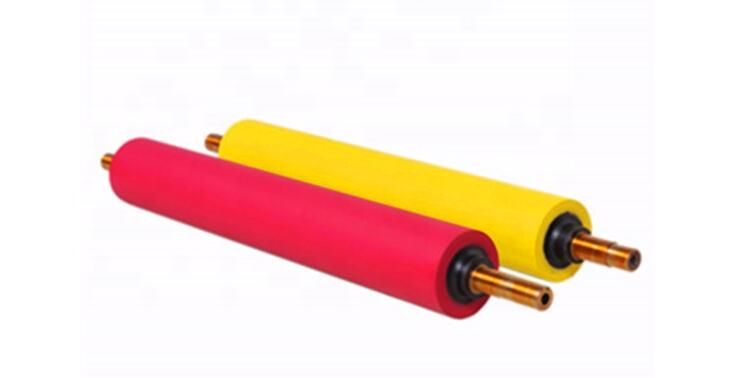

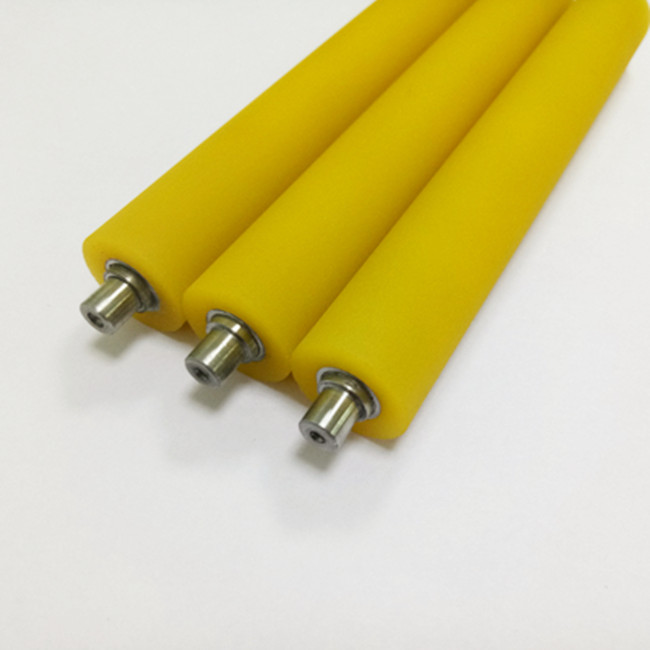

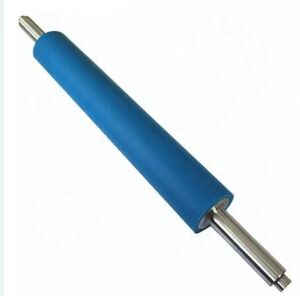

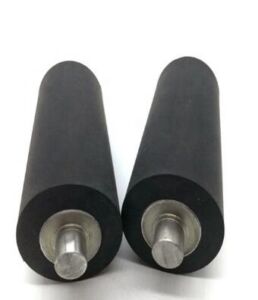

Machinery Parts Pu Roller Converting Rubber Coating Roller For Laminating Machine

We will do 3 times of dynamic balancing test in the process of production of each rubber roller,which will ensure the using effect. In general,if it can be displayed within 10g on the dynamic balancing device, it is called dynamic balancing. But we can do less than 2g.

Testing by making small sample before mass productionTesting by making small sample before mass production:
We will make a small sample before the official production, after vulcanization, 24 hours later we will check the hardness, color, and Impurity situation. We will control the hardness tolerance within 3degree. If it is not qualified we will change the formulated immediately and to make the sample again till all the data reach the customer’s request.

Size	According To Customer’s Drawing (For offset printing roller, please tell us the model and we can check if we have the drawing )
Dimension	10MM-1500MM,Length:50MM-8200MM
Material	NBR, Silicone, Rubber, Polyurethane, EPDM, hypalon ETC
Temperature	According customers’ requirements
Color	Red, Black, White, Clear, etc can do the color base on your pantone NO.
Roll core	stainless steel,45#steel or 20#steel or 5#aluminum seamless pipe

Application field

---

1.Textile machinery
2. Printing machinery
3. Woodworking machinery
4.Packaging machinery
5.Plastic machinery
6.Leather machinery
7.Printing and dyeing machinery
8.Conveying machinery
9.Papermaking machinery





Packing&Shipping

---

The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

If you have any question, please contact us
